 2 inch

Up .375 - .625 .625 - 1 inch 1.125 - 1.375 2 inch





Home

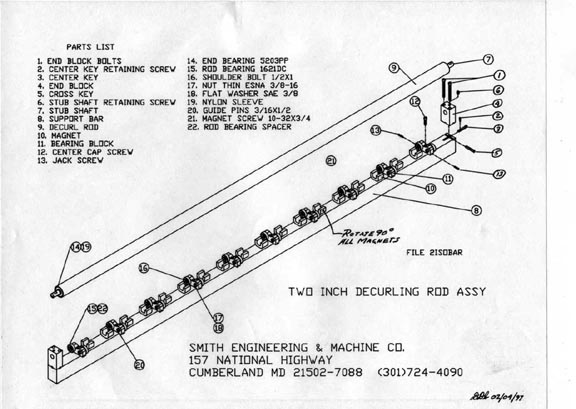

  1. End Block Bolts
  2. Center Key Retaining Screw
  3. Center Key
  4. End Block
  5. Cross Key
  6. Stub Shaft Retaining Screw
  7. Stub Shaft
  8. Support Bar
  9. DeCurl Rod
  10. Magnet
  11. Bearing Block
  12. Center Cap Screw
  13. Jack Screw
  14. End Bearing 5203PP
  15. Rod Bearing 1621DC
  16. Shoulder Bolt .5" x 1"
  17. Thin Nut Esna 3/8-16
  18. Flat Washer SAE 3/8
  19. Nylon Sleeve
  20. Guide Pins .187" x .5"
  21. Magnet Screw 10-32 x .75"
  22. Rod Bearing Spacer
