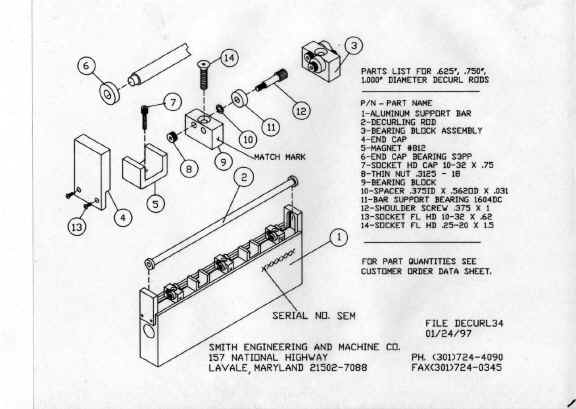

1. Aluminum Support Bar
2. DeCurling Rod
3. Bearing Block Assembly
4. End Cap
5. Magnet #812
6. End Cap Bearing S3PP
7. Socket Head Cap Screw 10-32 x .75"
8. Thin Nut 5/16-18
9. Aluminum Bearing Block
10. Spacer .375 ID x .562 OD x .031"
11. Bar Support Bearing 1604DC
12. Shoulder Screw .375" x 1"
13. Flat Head Socket Screw 10-32 x .620"
14. Flat Head Socket Screw  1/4-20 x 1.5"
